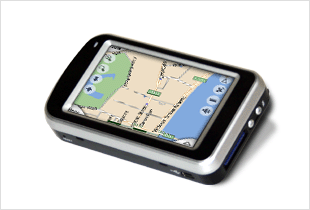

KG-05  |
|
GPS NAVIGATION
Multimedia Player
Audio Format: MP3 (up to 44KHz), WMA ( up to 44KHz), WAV
Video Format: MPEG-2, MPEG-4
Photo View
Format: JPEG, BMP, GIF, PNG
Display
Screen size: 4.0” diagonal
Resolution: QVGA 480*272 pixels, 65,536 possible colors
Display type: TFT 4-wire resistive touch panel Brightness: 200 lumen
Audio
Integrated speaker
Stereo headphone jack
System
CPU: ARM9 application processor
Frequencies: 266MZ-400MHz (ARM core)
SDRAM: 64 MB
NAND flash:64MB (MAX up to 4 GB )
OS: Windows CE 4.2 (OR CE 5.0)
Frequency: L1, 1575.42 MHz
Sensitivity: -156 dBm
Channels: 20
Position: <10 meters ; Velocity: 0.1m/s; Time: 0.01s
Reacquisition: 0.1 sec,average ; Hot start: 1 sec,average
Warm Start: 29 sec, average ; Cold Start: 38 sec, average
Antenna: Embedded antenna and optional external antenna
Buttons: Power(On/Off ), Reset (On/Off)
Wheel: Volume control
LEDs: AC/DC Power, Battery status
Standard SD (Secure Digital) card slot
USB: USB 2.0 full speed
Stereo headphone jack: 3.5 mm |
|
|
|
